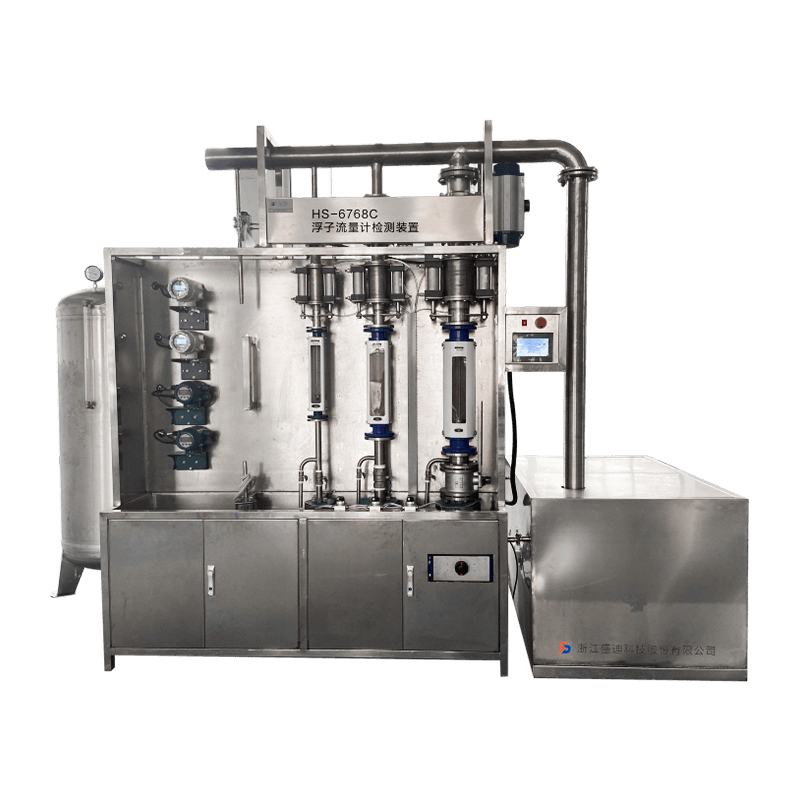

Model |
HS-6768C |
|
Applicable caliber |
DN15-DN100 |
|
Straight pipe |
≥ 5 D |
|
Type of Checked Meter |
Glass Rotameter |
|
Flow range |
（0.0 04 ～40 ）m 3 /h |
|
Number of tables |
1 epitope |
|
Work pressure |
0.3 ~ 0.6 Mpa ) |
|
Verification method |
Standard table method |
|
Standard measure |
0.5 level standard electromagnetic flowmeter |
|
Uncertainty of device expansion |
U r = （0.05% ～ 0. 5 %） ，k = 2 |
|
Flow stability |
Better than 0.2% |
|
Equipment size |
4 m× 2.5 m× 2 m (length×width×height) |
Features:
1. Configure multiple standard flow meters, flow range: 004-40m3/h full coverage.
2. A reasonable standard electromagnetic flowmeter can be automatically selected according to the diameter of the float flowmeter being inspected.
3. Verification method: standard table method
4. Obtain the indication value of standard electromagnetic flowmeter automatically.
5. The measurement performance such as the indication error (positive and negative stroke) and return difference of the tested float flowmeter is automatically calculated through the software.
6. Equipped with dedicated PC operation management software under Windows, the verification software is more humane and intelligent, supports data storage and upload, and supports remote upgrades.
7. Data processing: automatically calculate and draw verification conclusions according to regulations, can save all water meter verification data, and have database functions such as verification record query, correction, statistics, and printing
