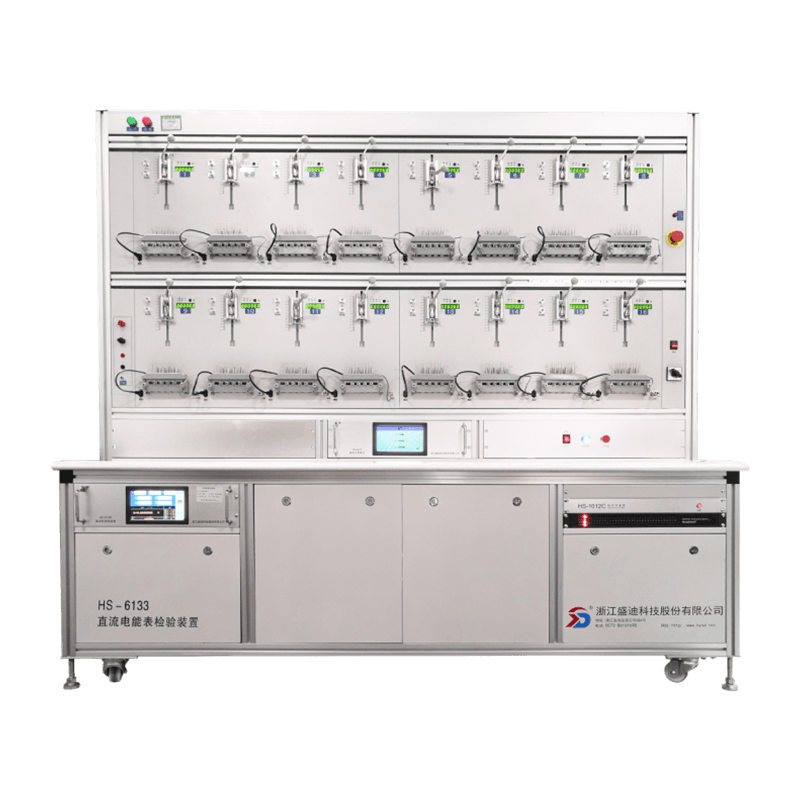

Item |
Technical Parameter |
||
Bench accuracy |
0.05/0.02 class |
||
Reference Meter |
HS-5103E DC reference standard meter Accuracy:0.05/0.02 class |
||
Output Voltage |
Range |
Stability(%/min) |
|
1000V |
0.02 |
||
500V |
0.02 |
||
250V |
0.02 |
||
125V |
0.02 |
||
62.5V |
0.02 |
||
Range:1V-1500V,0~120%,Max. output(Option1500V) |
|||
Output Current
|
Range |
Stability(%/min) |
|
500A |
0.4 |
||
100A |
0.05 |
||
50A |
0.05 |
||
10A |
0.05 |
||
5A |
0.05 |
||
1A |
0.02 |
||
100mA |
0.02 |
||
10mA |
0.02 |
||
1mA |
0.02 |
||
Output Range:0.1mA~500A,0~120% |
|||
Output current small signal(DCIU) |
10V |
0.02 |
|
5V |
0.02 |
||
2.5V |
0.02 |
||
1.25V |
0.02 |
||
0.625V |
0.02 |
||
100mV |
0.02 |
||
10mV |
0.02 |
||
1mV |
0.05 |
||
Range:1mA~10V,0~120% |
|||
Start current output |
0.1mA (or 0.01mV) ,accuracy:1%,start-up power:accuracy 1%; |
||
Test function |
Basic error, creep test, start test, constant test, daily test |
||
Communication Test |
RS485 Communication test,According to the protocol for communication of the measured meters. |
||
Power supply |
3 X 220V/380V (Y)±10%,50Hz; |
Standard:
GBT 33708-2017 Static meter for direct current energy
JJG 842-1993 Verification Regulation of DC Kilowatt-hour Meter Q/GDW 1825-2013 Technical Specification for direct current electricity meters
JBT 9288-1999 External shunt
Function advantage:
Dimensions(unit:mm)
Integration |
Position |
Number of rack |
Dimension:L*W*H(mm) |
Fission |
Position |
Number of rack |
Dimension:L*W*H(mm) |
6 |
|
1600*750*1600 |
6 |
|
1600*750*1600 |
||
12 |
|
1600*750*1920 |
16 |
|
2000*750*1920 |
||
16 |
|
2000*750*1920 |
Cabinet |
600*800*1800 |
