Item/Model |

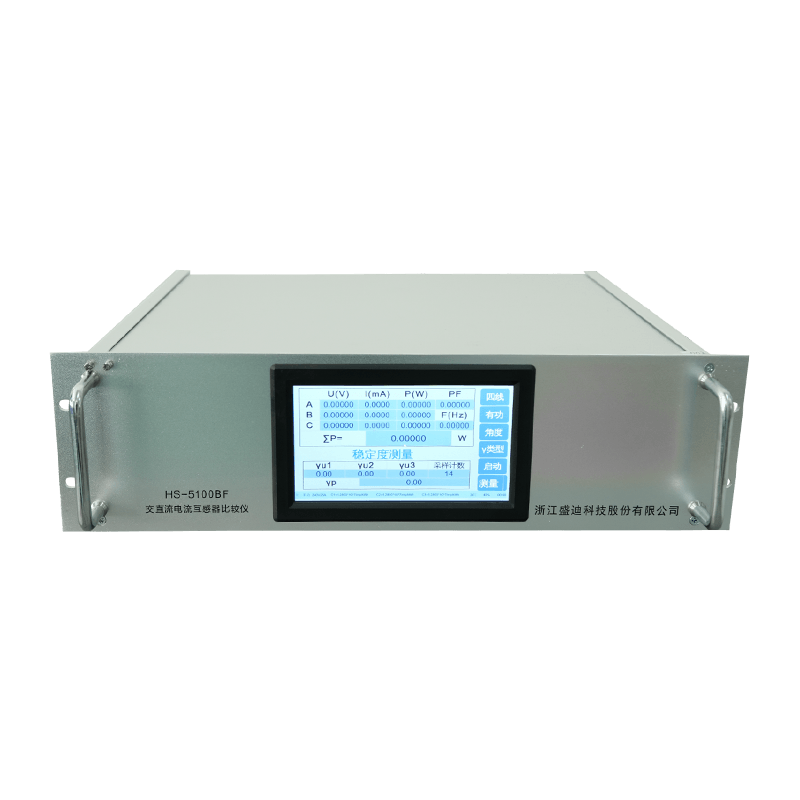

HS-5100BF |
|
|
level of accuracy |
0.02 level |
|
|
Measuring range |
Rated current |
0.1mA-120A |
|
Secondary current |
1A/5A |
|
|
Comparison |
0.001%～99.99% |
|
|
Angle difference |
0.001'～999.9' |
|
|
measurement accuracy |
Current |
0.02% |
|
Comparison |
0.02% |
|
|
Angle difference |
0.6' |
|
|
Input power |
AC220V±10%, 50Hz; Maximum power consumption: 70VA |
|
|
Dimensions |
355 × 185 × 145 mm |
|
Main Feature:
1) Wide range measurement: current measurement range: 0.1mA ～120A
2) Multifunctional measurement:
a) Basic measurement functions such as current, phase and frequency.
b) Current stability measurement
c) Vector diagram display, a variety of vector diagram display methods (clockwise rotation, counterclockwise rotation; 12: 00 o'clock, 3:00 o'clock reference position optional; reference reference variable; phase display mode: 0 ~ 360º or ±180º can be set) to meet various display habits.
d) Waveform display, harmonic analysis, distortion calculation. Spectrogram display; can display the amplitude, content, and phase of harmonics.
3) Harmonic analysis: It can analyze the harmonics below the 99th order of the power frequency current.
4) Data and graphic display: It can visually display the measurement working status and various measurement data. It can visually display the waveform of the measured electric current, the current phase vector diagram, and the bar graph of the harmonic analysis wave.
5) Manual or automatic range switching.
6) When using asynchronous communication: the baud rate can be set.
7) Equipped with 7-inch 800*480 dot matrix TFT color liquid crystal display, the display is clear and the colors are vivid.
8) Touch screen operation: humanized design, reasonable combination of functions, and very simple operation.
