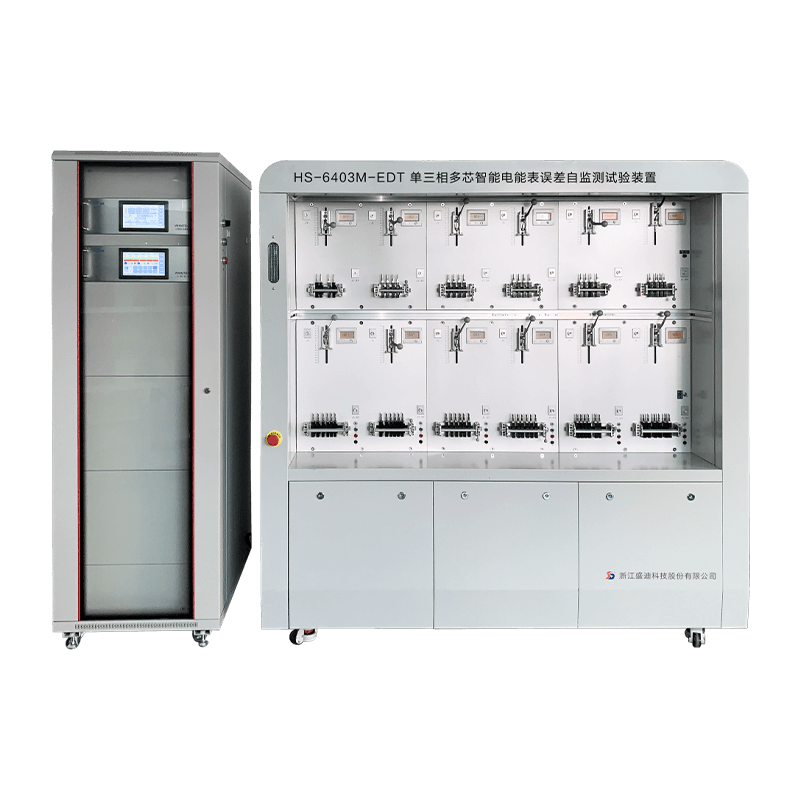

HS-6403M-EDT single three-phase multi-core intelligent electric energy meter error self-monitoring test device

HS-6403M-EDT is an error self-monitoring inspection device designed based on the IR46 standard and the requirements of a multi-core modular electric energy meter.
The device is equipped with a PC control management software with a humanized design, which provides a complete solution for the automatic verification of the electric energy meter. At the same time, the DLL required for secondary development is provided, which greatly improves the customer's ability to control and manage the device.

Phone : 0086-573-86161698

Description

Project	Technical Parameters
Model	HS-6403M-EDT single three-phase multifunctional electric energy meter error self-monitoring test device
Device accuracy level	0.05 level
Standard table configuration	HS-5300B three-phase multi-function standard electric energy meter, accuracy level: 0.05
The output voltage	0-480V, adjustment range: 0-120%, adjustment fineness: 0.01%;
Output current	0.1mA-120A, adjustment fineness: 0.0001A (minimum);
Output phase	Range: 0-359.99°; adjustment fineness: 0.01°;
Output frequency	45Hz-65Hz; Adjustment fineness: 0.001 Hz;
Output waveform distortion	Voltage and current ≤0.5%;
Power stability	≤ 0.05%
Load characteristics	Resistive, inductive, and capacitive
Communication test	RS485 communication test, according to the communication protocol of the tested meter;
Number of device inspection tables	Single-phase 6-epitope, three-phase 6-epitope (standard); the number of meters can be customized;
Device input power	AC220V±10%, 50Hz, (AC120V/240V order requires instructions) Maximum power consumption: 1000VA
Dimensions	One-piece (length×width×height mm)	Split type (length×width×height mm)
	6+6 epitope: 2200×800×1920	6+6 epitope: 2200×800×1920
		Cabinet body: 600×800×1920

Main Feature:
1. Equipped with 7-inch high-definition touch screen, flexible and convenient operation
2. Low-power Bluetooth communication system;
3. Dual-channel photoelectric sampling;
4. Error self-monitoring accuracy test;
5. Error self-monitoring out of tolerance event record;
