Model |
HS-1012A |
HS-1012B |
Frequency range of measured signal |
≤10MHz |
1Hz~1.5kHz |
Measured signal amplitude |
≤ 12V |
|
Measured day timing error range |
±0.001 seconds/day~±9999 seconds/day |
|
Time base frequency |
5×10 6 Hz |
|
Time base frequency accuracy |
≤±1.0x10 -8 (@25℃, factory calibration) |
|
Daily fluctuation of time base frequency |
≤±3×10 -10 |
|
Dimensions (length × width × height mm) |
300×250×210 |
300×250×120 |
Use environmental conditions |
Temperature: 0℃~40℃; Humidity: <85% RH |
|
Power supply |
AC 220V ± 10%, 50 / 60Hz |
Product number:
Model |
Scope of application |
HS-1012A |
Clock signal measurement, configuration and platform |
HS-1012B |
Standard second pulse measurement, suitable for manual operation |

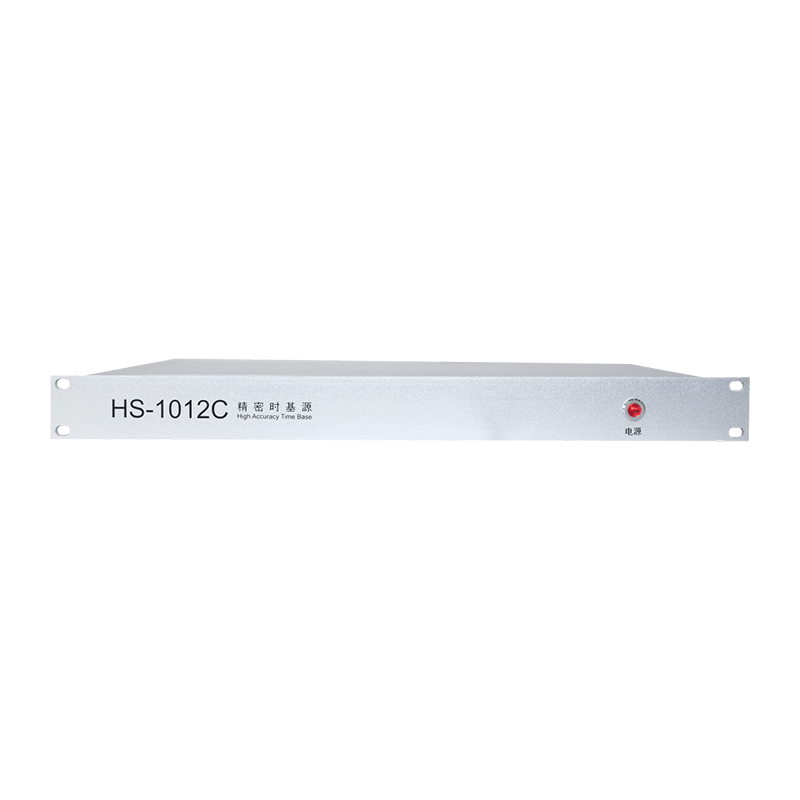

HS-1012C |
Standard time base source, suitable for use with the body |
