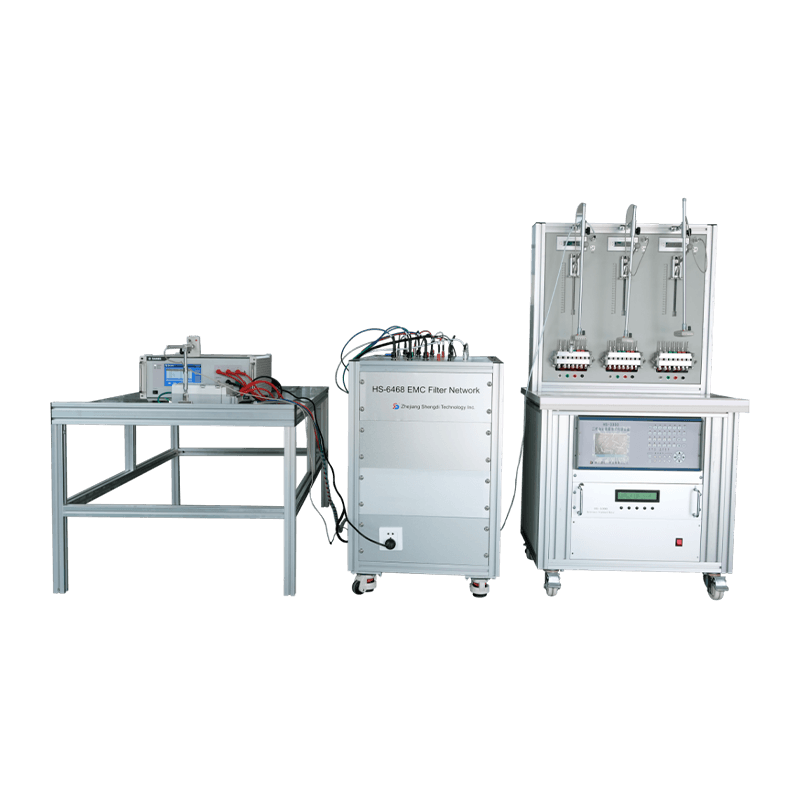

HS-6468B energy meter EMC test bench

This test bench can be widely used in measurement centers of start grid, management and electric energy measuring departments of power supply companies, national measurement laboratories, as well as large industrial and mining enterprises and electric meter manufacturers.

share:

Phone : 0086-573-86161698

contact us

Description

Accuracy of test bench: 0.05 class



AC voltage output

AC voltage output

Range

3×60V/120V/240V

3×0.1A/1A/5A/20A

Adjust range

0~120%

0~120%

Fineness

0.01%RG

0.01%RG

Stability

0.02%/120 s

0.02%/120 s

Distortion

≤0.5%(liner)

≤0.5%(liner)

Power output

active power stability:0.02%RG/120 s

reactive power stability:0.02%RG/120秒s

active power accuracy:0.05%RG

reactive power accuracy:0.05%RG

Phase angle

adjust range:0°~359.99°

fineness:0.01°

Resolution:0.001°

accuracy:0.05°

Frequency

adjust range:45Hz~65Hz

fineness:0.001Hz

Resolution:0.0001Hz

accuracy:0.002Hz

Energy measurement

active energy:0.05%RD

reactive energy:0.1%RD

Dimension

movable cabinet

600×800×1845mm (L*W*H)

Others

power supply:AC220V±10%,50Hz±10%

Work with EMC generator to do the EMC test to energy meters, including:
1.Electrostatic discharge immunity test
2.Fast transient pulse group test
3.Surge immunity test
4.Attenuated oscillation immunity test
5.RF electromagnetic emission immunity test
6.RF induction conduction disturbance immunity test
