Item |

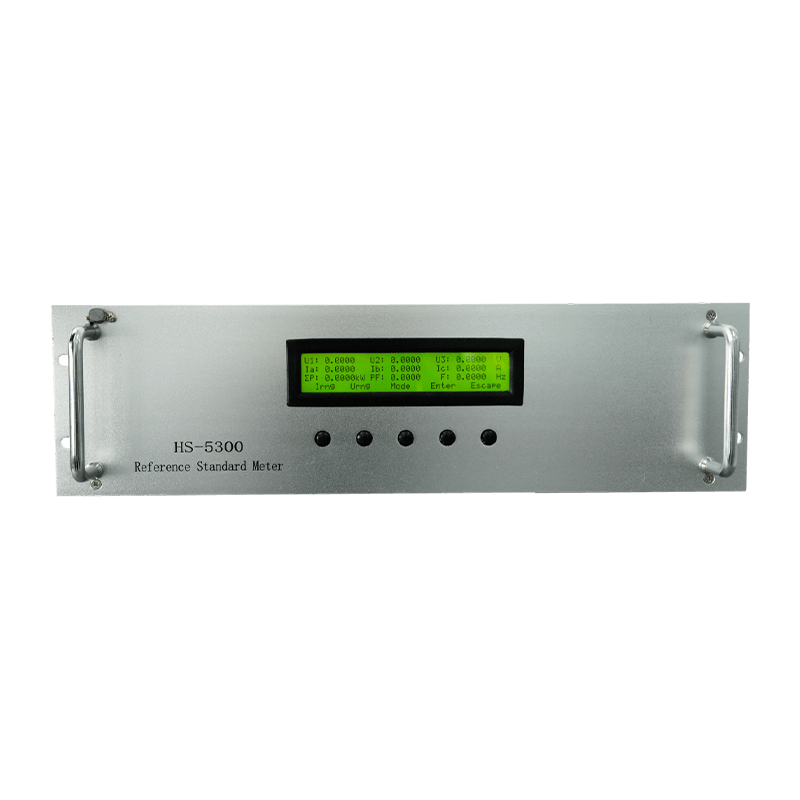

HS-5300 |
HS-5302 |
HS-5300H |
|||
|
Accuracy |
0.05 class |
0.1 class |
0.05 class |
0.1 class |
0.02 class |
|
|
Measurement range |
U |
30～480V |
||||
|
I |
0.3mA～120A |
1mA～200A |
0.1mA～120A |
|||
|
F |
40～70Hz |
|||||
|
PF |
-1.00000 ～+1.00000 |
|||||
|
Measurement accuracy |
U |
0.05% |
0.1% |
0.05% |
0.1% |
0.02% |
|
I |
10mA～120A: 0.05% |
10mA～120A: 0.1% |
20mA～200A: 0.05% |
20mA～200A: 0.1% |
5mA～120A: 0.02% |
|
|
P/S |
0.05% |
0.1% |
0.05% |
0.1% |
0.02% |
|
|
Q |
0.1% |
0.2% |
0.1% |
0.2% |
0.05% |
|
|
Operating environment |
Temperature：0~40℃ ；Humidity：＜85% R.H. |
|||||
|
Power supply |
AC220±10%，50/60Hz，AC120/240V(Customized)； |
|||||
Remark 1：The accuracy of electric energy measurement is the same as the corresponding power measurement accuracy.
Remark 2： P/Q/S Accuracy of measurement under the condition of the power factor > 0.25.
Function advantage:
High stability of active compensation current transformer, wide measuring range, high precision, good stability for a long time
Can measure the voltage, current, frequency, phase and active/reactive power, apparent power at the same time.
With many kinds of reactive algorithm
Can output active and reactive power signals at the same time, also can output a variety of apparent power signal
-->
